Major Advantages for Utilities Reduced Faults: Prevents phase-to-phase and phase-to-ground faults caused by external contact. Narrower Right of Way (ROW): Allows for tighter spacing between conductors, making it ideal for narrow streets or forest corridors. Safety: Reduced risk of accidental electrocution if a line falls or is touched by vegetation. Corrosion Resistance: The protective jacket guards the aluminum core against saline or chemically aggressive environments. Common Accessories Required Insulation Piercing Connectors (IPC): Used for tapping or connecting without stripping the insulation. Arc Protection Horns: To protect the conductor from damage during lightning strikes. Dead-end Clamps and Suspension Clamps: Specifically designed to grip the outer sheath without damaging the insulation.

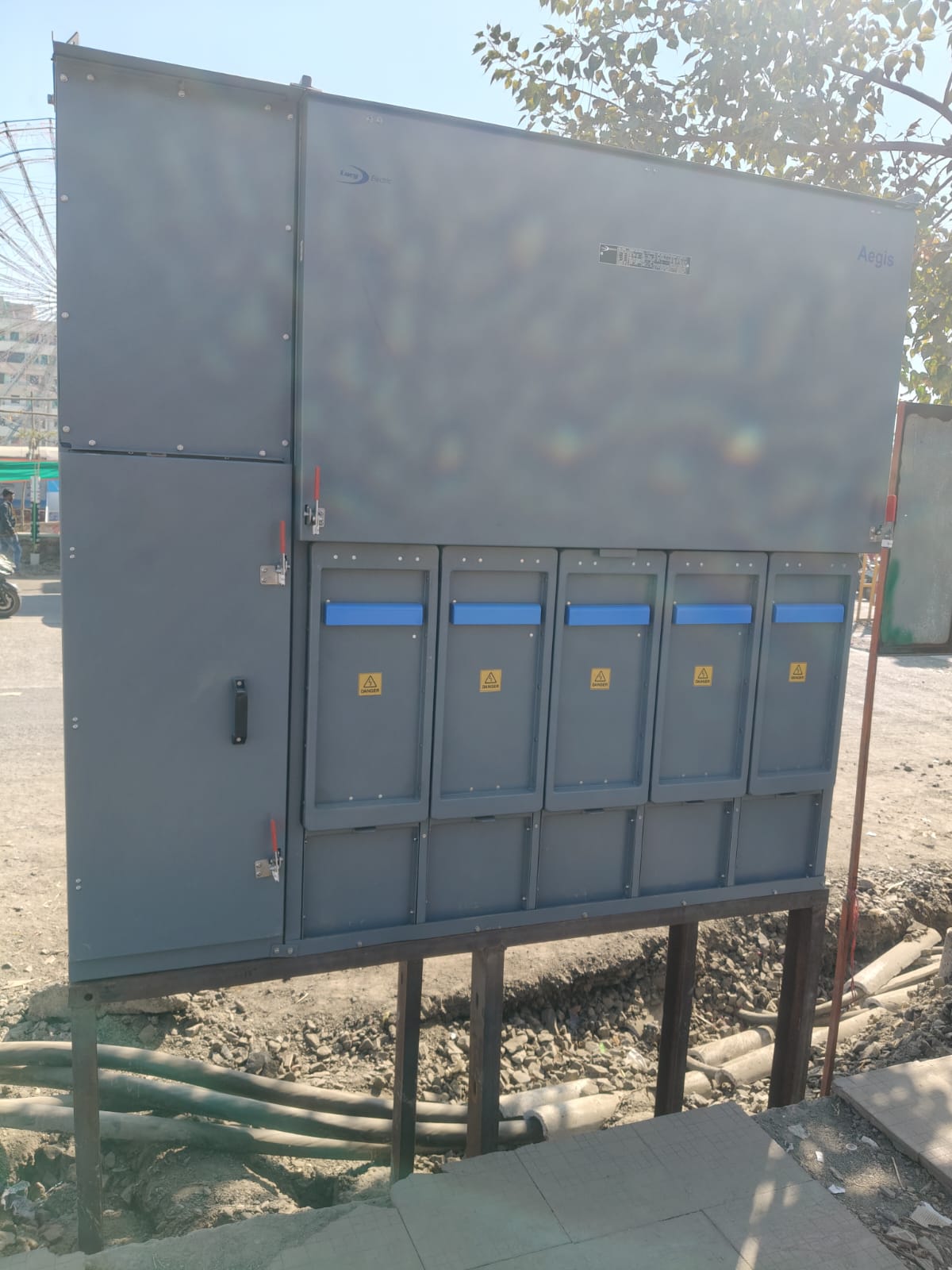

Key Technical Specifications While specifics vary by manufacturer (like ABB, Schneider, or Siemens), here are the standard benchmarks: Insulation Type: Most modern RMUs are SF6 (Sulfur Hexafluoride) gas-insulated, though “Green” air-insulated or solid-shielded versions are becoming popular for environmental reasons. Voltage Ratings: Standardized for 11kV or 33kV systems. Current Rating: Typically 630A for the ring switches and 200A for the transformer tee-off. Short Circuit Rating: Usually rated for 20kA to 25kA for 3 seconds. Enclosure: Rated IP54 or higher for outdoor durability, often made of stainless steel to prevent corrosion. 🌟 Benefits of Using an RMU Compact Design: Takes up significantly less space than traditional air-insulated switchgear. All-Weather Performance: Because the “live” parts are sealed in a gas tank, they are protected from dust, humidity, and pollution. Low Maintenance: Being “sealed for life,” they require very little upkeep over a 20–30 year lifespan. Smart Grid Ready: Most 2026-era RMUs come with FRTUs (Feeder Remote Terminal Units) for remote monitoring and switching. 🛡️ Safety Features Internal Arc Rating: Designed to vent gases safely away from operators in the event of an internal fault. Interlocking: Mechanical locks prevent “human error,” such as trying to turn on the earth switch while the main power is still connected. Padlocking: Ability to lock switches in the “Open” or “Earthed” position for maintenance safety.

Number of Cores 12core Size (Cross-Sectional Area) 2.5 sq.mm Conductor Size 2.5sqmm Insulation Material both xlpe and pvc Application Control Cable Cable Length 500 meter Brand Polycab Voltage 450/750 V Current Rating 16–17A Availability In Stock The 12-core, 2.5 sq mm copper armoured multistrand control cable is designed for industrial control and instrumentation applications. It consists of 12 high-conductivity stranded copper conductors, each with a cross-sectional area of 2.5 sq mm, insulated with XLPE (Cross-Linked Polyethylene) for excellent thermal and electrical performance. The insulated cores are covered with a PVC inner sheath, and the cable is protected by galvanised steel wire or strip armouring, depending on the variant, to provide mechanical strength. A durable PVC outer sheath ensures resistance to moisture, abrasion, and chemicals. The cable is rated for 650/1100 V, supports continuous operation at 90 °C, and can withstand short-circuit temperatures up to 250 °C. It conforms to IS 7098-1, IS 8130, and IS 3975 standards. This cable is suitable for control panels, industrial automation, machinery wiring, and low-voltage control circuits, providing reliable performance in harsh industrial environments. It is supplied and distributed by Laxmi Trading Services, offering dependable availability and support for industrial and commercial projects.
