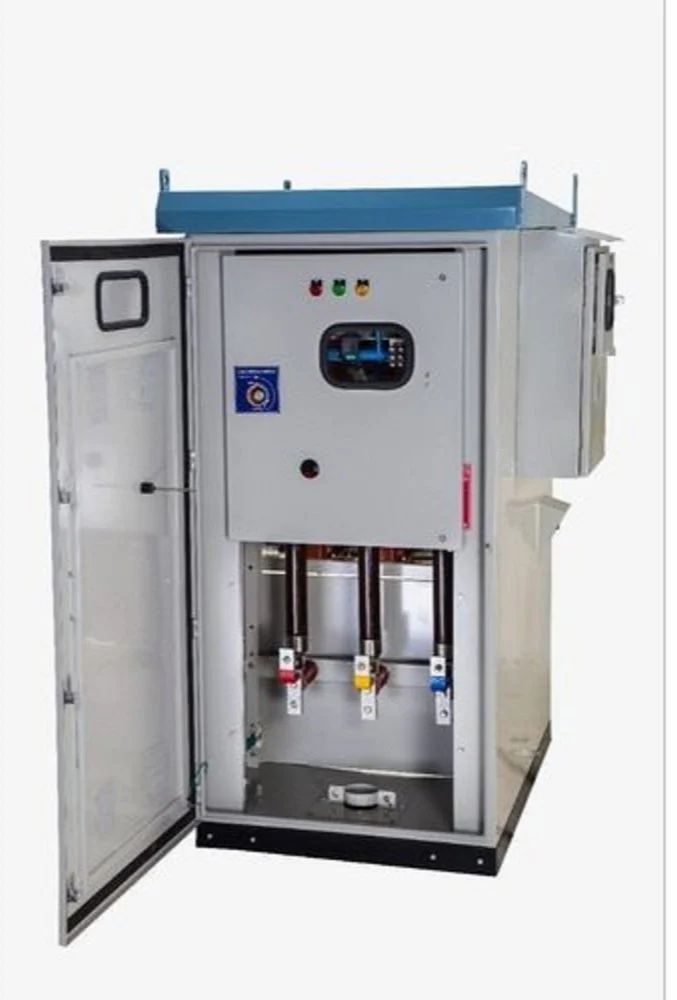

11kv Metering Cubicle

System Voltage 11 kV

CT Ratio 25/5 A

Phase Three Phase

Rated Voltage 11 KV

Type Dry Type

CT/PT Type both dry/oil

Material MS

Ingress Protection (IP) Rating IP54

Material of Construction Mild Steel (MS)

Certifications MSEDCL Approved, CPRI Approved

Compartments Dual Compartment

Use To Monitor And Measure Electricity Consumption In Industrial And Domestic Settings

Surface Finish Powder Coated

Metering cubicle, CTs (Current Transformers) and PTs (Potential / Voltage Transformers) must meet relevant Indian Standards: e.g., CTs per IS 2705, PTs per IS 3156. According to Maharashtra DISCOM (MSEDCL) technical spec, the 11 kV metering cubicle should have 3 CTs + 3 PTs. Environmental and site conditions: design needs to account for temperature (max ambient ~50°C in certain specs), humidity, rain, seismic loads, etc.Insulation and withstand voltages: The design involves adequate insulation strength and creepage / clearance distances for 11 kV systems. For example, SASA Switchgears specifies lightning impulse withstand voltage, power frequency withstand, etc

Incepted in the year 2020 Laxmi Treding Services is distinguished Wholesaler And Service Provider Offering an Enormous Consignment Of Electrical Transformer,Suspension Clamp,Flood Light,VCE Panel,VCB Panel,Earthing Electrode,Feeder Pillar Etc .

Additional Information:

Production Capacity: CT -100–800 A primary, 5 A secondary PT -11 kV primary, 110 V secondary (for metering)

Delivery Time: ready stock

Packaging Details: as per customer requirement
